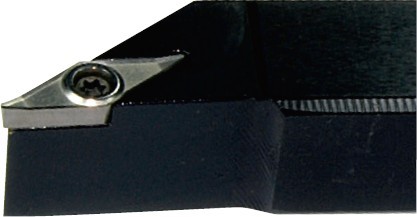

SVJC(B)-N

Model：SVJC(B)-N
SVJC(B)-N

INQUIRY

Product Introduction
Cutting terms & conditions

SVJC(B)-N

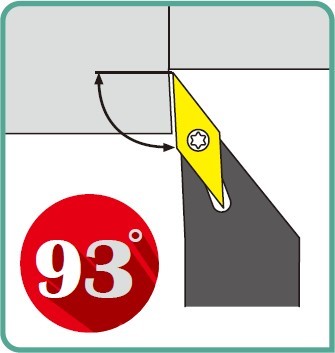

Right-Hand Show

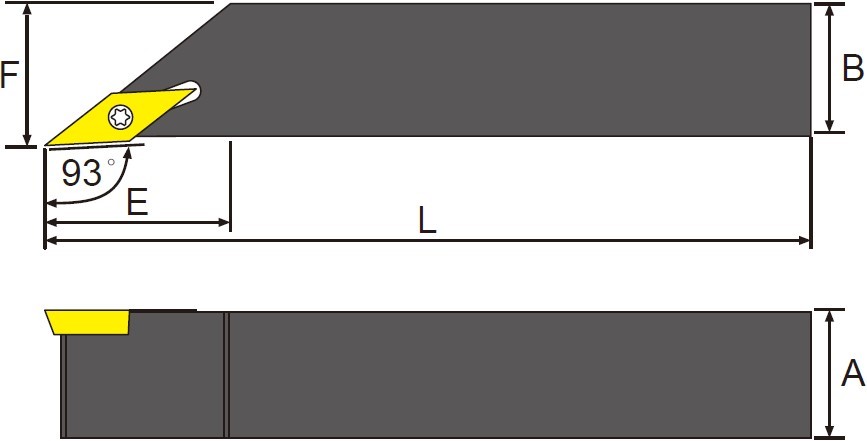

Model No	Stock		Dimension(mm)					Insert	Screw	Wrench
Model No	R	L	A	B	L	E	F
SVJBR/L-1010K11N			10	10	125	18	10	VB口口1103口口	CS25	T-8
SVJBR/L-1212K11N			12	12	125	18	12	VB口口1103口口	CS25	T-8
SVJBR/L-1616K11N			16	16	125	30	16	VB口口1103口口	CS25	T-8
SVJBR/L-1616K16N			16	16	125	30	16	VB口口1604口口	CS35	T-15

Model No	Stock		Dimension(mm)					Insert	Screw	Wrench
Model No	R	L	A	B	L	E	F
SVJCR/L-1010K11N			10	10	125	18	10	VC口口1103口口	CS25	T-8
SVJCR/L-1212K11N			12	12	125	18	12	VC口口1103口口	CS25	T-8
SVJCR/L-1616K11N			16	16	125	30	16	VC口口1103口口	CS25	T-8
SVJCR/L-1616K16N			16	16	125	30	16	VC口口1604口口	CS35	T-15
SVJCR/L-2020K16N			20	20	125	30	25	VC口口1604口口	CS35	T-15
