Square Carbide End Mill Ball Nose Carbide End Mill Barrel Carbide End Mill Corner Radius (Bull nose) Carbide End Mill For Aluminum Alloy Carbide End Mill Roughing Carbide End Mill Tapered Carbide End Mill & Position Drill V-Type Chamfer Cutter

Product Details

EPM 4000

  • Model：EPM 4000
  • 4 Flutes Carbide End Mill
Product detail PDF File download
INQUIRY

The Cutting Data For EPM4000 Series

Material Alloy Steel、Carbon Steel
Shank(mm) n(min) Vf(mm/min)

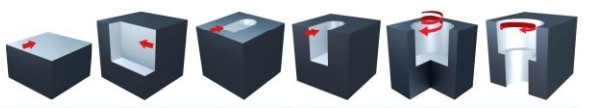

Slotted Side
4 4800 270 950
6 3100 240 650
8 2300 240 750
10 1900 240 750
12 1600 240 550
16 1200 270 400
Depth
(D：F.D)

EPM 4000
4 Flutes Carbide End Mill
4 Flutes Carbide End Mill
3 Flutes Carbide End Mill
3 Flutes Carbide End Mill

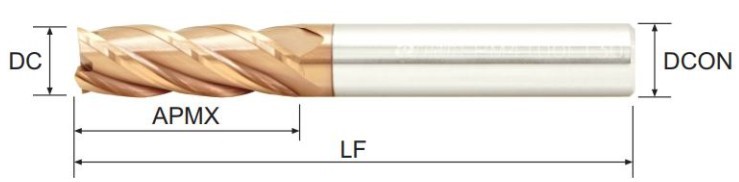

Model No Stock DC APMX LF DCON
EPM4010   1 2.5 50 4
EPM4010L103 1 3 50 4
EPM4015 1.5 3.75 50 4
EPM4015L104   1 4 50 4
EPM4020   2 5 50 4
EPM4020L106   2 6 50 4
EPM4030   3 7.5 50 4
EPM4040   4 10 50 4
EPM4040L112   4 12 50 4
EPM4050   5 12.5 50 6
EPM 4000
4 Flutes Carbide End Mill
4 Flutes Carbide End Mill
3 Flutes Carbide End Mill
3 Flutes Carbide End Mill

Model No Stock DC APMX LF DCON
EPM4060   6 15 50 6
EPM4060L118   6 18 50 6
EPM4060E1   6 15 75 6
EPM4080   8 20 60 8
EPM4100   10 30 75 10
EPM4100L130 10 30 75 10
EPM4120   12 30 75 12
EPM4160   16 48 100 16

*Reserve the right to modification due to technical requirements.
*Please refer to the physical product.
