Product Details

EMM 4000

Product detail PDF File download

INQUIRY

Material	Steel、Stainless steel、Cast Iron
Shank(mm)	n(min)	Vf(mm/min)
Shank(mm)	n(min)	Slotted	Side
4	4800	200	700
6	3100	180	500
8	2300	180	580
10	1900	180	580
12	1600	180	410
16	1200	200	300
18	1240	225	450
20	1060	300	240
Depth (D：F.D)

EMM 4000

4 Flutes End Mill

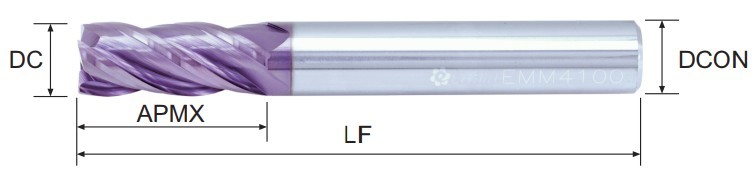

Model No	Diameter (DC)	Flute length (APMX)	O.A.L. (LF)	Shank Dia (DCON)
EMM4010	1.0	2.5	50	4
EMM4010D6	1.0	2.5	50	6
EMM4015	1.5	3.75	50	4
EMM4015D6	1.5	3.75	50	6
EMM4020	2.0	5	50	4
EMM4020D6	2.0	5	50	6
EMM4025	2.5	6.25	50	4
EMM4025D6	2.5	6.25	50	6
EMM4030	3.0	7.5	50	4
EMM4030D6	3.0	7.5	50	6

EMM 4000

4 Flutes End Mill

Model No	Diameter (DC)	Flute length (APMX)	O.A.L. (LF)	Shank Dia (DCON)
EMM4030E1	3.0	7.5	75	4
EMM4035	3.5	8.75	50	4
EMM4035D6	3.5	8.75	50	6
EMM4040	4.0	10	50	4
EMM4040D6	4.0	10	50	6
EMM4040E1	4.0	10	75	4
EMM4040H	4.0	10	100	4
EMM4045	4.5	11.25	50	4
EMM4050	5.0	12.5	50	6
EMM4050E1	5.0	12.5	75	6

EMM 4000

4 Flutes End Mill

Model No	Diameter (DC)	Flute length (APMX)	O.A.L. (LF)	Shank Dia (DCON)
EMM4050H	5.0	12.5	100	6
EMM4055	5.5	13.75	50	6
EMM4060	6.0	15	50	6
EMM4060E1	6.0	15	75	6
EMM4060H	6.0	15	100	6
EMM4060M	6.0	15	150	6
EMM4065	6.5	16.25	60	8
EMM4070	7.0	17.5	60	8
EMM4075	7.5	18.75	60	8
EMM4080	8.0	20	60	8

EMM 4000

4 Flutes End Mill

Model No	Diameter (DC)	Flute length (APMX)	O.A.L. (LF)	Shank Dia (DCON)
EMM4080E1	8.0	20	75	8
EMM4080H	8.0	20	100	8
EMM4080M	8.0	20	150	8
EMM4100	10.0	25	75	10
EMM4100H	10.0	25	100	10
EMM4100M	10.0	25	150	10
EMM4120	12.0	30	75	12
EMM4120H	12.0	30	100	12
EMM4120M	12.0	30	150	12
EMM4140	14.0	35	100	12

EMM 4000

4 Flutes End Mill

Model No	Diameter (DC)	Flute length (APMX)	O.A.L. (LF)	Shank Dia (DCON)
EMM4160	16.0	48	100	16
EMM4160M	16.0	48	150	16
EMM4160R	16.0	48	200	16
EMM4160R	16.0	48	200	16
EMM4180M	18.0	48	150	20
EMM4200	20.0	50	100	20
EMM4200M	20.0	50	150	20
EMM4200R	20.0	50	200	20

*Reserve the right to modification due to technical requirements.
*Please refer to the physical product.
